Please note: this is a summarized version of an article written and published by Polywater®. Click here to read full article🔗

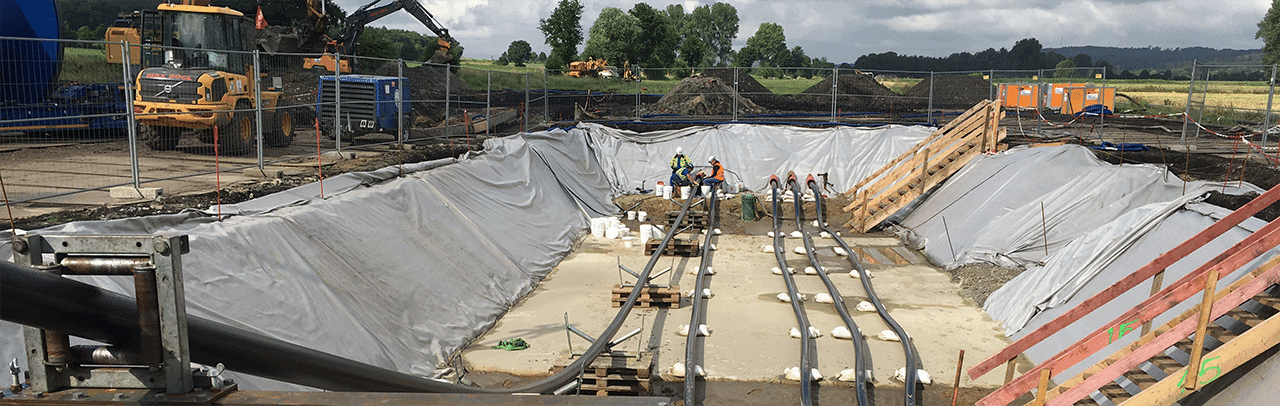

With construction projects breaking ground worldwide, electrical engineers can maximize both the safety and efficiency of cable pulls by taking a proactive approach to installation. By embracing the power of planning software, they can ensure a longer life for the cable and save time and labor hours in the office and the field.

“Planning is a place where engineers should take time to look at various ‘what if’ scenarios to make a good decision for the actual installation,” said Sheri Dahlke, vice president of research and development for Polywater®.

Through a proactive approach to cable pulling, engineers can plan a conduit system that limits the number of cable splices and/or underground structures, which will save the project both money and time. “They can also plan safe pulls that will not exceed the tension limits of the cable or equipment, which will create a safe work environment,” said Wendy Peterson, solutions engineer coordinator for Polywater.

Before the field crews even put their pipe in the ground, engineers can follow these four best practices during the planning phase.

📐 Cable Fill & Jamming Prevention (AS/NZS 3000 Alignment)

• Local Standards Compliance: While the original text references US NEC limits, NZ engineers must adhere to AS/NZS 3000 conduit sizing and space factor rules (typically a 40% space factor for standard enclosures and conduits).
• Identify Jamming Risks: Jamming occurs in multi-core installations when three or more cables shift from a tight triangular formation into a flat, cradled layout.
• Mitigate Bend Compression: Clearance issues peak when cables bunched together are pulled around a tight bend or sweep, squeezing them against the internal duct walls.
• Adjust Conduit Specifications: Engineers should dynamically increase or decrease the duct internal diameter (ID) to either grant more clearance or lock the cables into a non-jamming triangular shape.

📈 Bend Radius, Tension & Sidewall Pressure

• Optimise Structural Assets: Accurate tension calculations allow for longer continuous pulls, reducing the need for costly joint pits across the alignment.
• Understand Mass vs. Tension: Increasing a bend's radius does not always reduce tension as much as assumed; in very large bends, extra cable weight on the bottom of the duct can actually increase friction.
• Model Sidewall Pressure: Tighter radii and higher degree angles exponentially spike sidewall pressure, which must be simulated to protect insulation jackets.
• Simulate Angle Variables: Software modeling allows users to tweak the angle and radius of a sweep to find the exact threshold where tension remains safe.

🧪 Lubricant Selection & Environmental Factors

• Specify Performance Metrics: Lubricants must be engineered and specified based on a low Coefficient of Friction (COF) relative to the exact cable jacket material and conduit type.
• Avoid Contractor Guesswork: Leaving lubricant choices completely up to civil contractors can lead to unverified product usage, jacket degradation, or unexpected friction spikes.
• Utilise Lab-Tested Data: Engineers should rely on verified manufacturer COF databases, applying a conservative safety factor to account for unpredictable NZ field and soil conditions.
• Account for Ground Water: Because underground conduits in New Zealand frequently encounter high water tables and wet trenches, silicone-enhanced lubricants must be used so they do not wash away during the pull.

🔄 Optimal Pull Direction & Site Logistics

• Sequence Bends Early: Pulling direction should generally be designed so cables pass through the major bends early in the run, preventing an exponential build-up of tension.
• Manage On-Site Hazards: Directional planning must balance calculations with real-world Kiwi logistics, including traffic management setups, off-road rig positioning, and tight suburban utility footprints.
• Understand Reverse Pull Risks: Choosing the wrong direction can result in shorter achievable distances, extra splice joints, unnecessary project delays, and permanent cable stretching.

Images are owned by American Polywater Corporation
